Dual Head

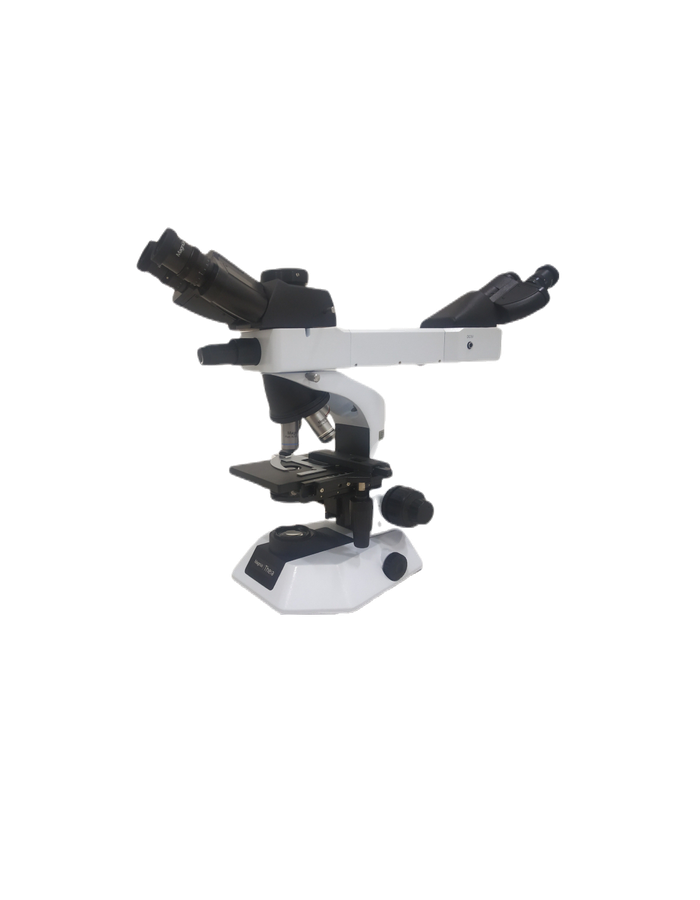

i. Dualhead teaching microscope with green LED pointer
ii. Sharp image with same orientation in all the heads
iii. User friendly and comfortable operation due to ergonomic design
iv. High intensity 3W uniform LED light with aspheric lens system
Optical system
Infinity corrected optical systems with Anti fungus Treatment, Uniformly centered.
Body
Aluminium die cast body with critical movement based on ball bearing & wire guide thereby ensuring smooth & precise movement.
Viewing Head for Main Observer
Siedentopf design Trinocular Head inclined at 30°, Interpupillary distance : 48-75 mm with diopter setting- 1 Nos
Dual Head Attachment
Dual head attachment with LED pointer-1 nos
The co-observers should get the same orientation of image as that of main observation.
Eye piece
Dual Head - WH10X/20 (FN 20) - 2 Pairs
Nosepiece
Inward facing Quadruple Nosepiece with positive click stop.
Objectives
Infinite Parfocal plan Achromat Objectives: 4X , 10X , 40X ( Spring), 100X ( Spring, Oil)
Focus System
Coaxial Coarse & Fine Focusing knobs on both sides
Mechanical Stage
Single layer mechanical stage , area:125 X 145mm, Movement range: 76X 50mm , double slide holder.
Illumination
Illumination system , LED 3W ( Life time: 30,000 working hours)
Condenser
Centerable abbe condenser with iris diaphrahm ( NA 1.25) focusable with Rack & Pinion.
| Specifications | Dual Head | Dual Head attachment |
|---|---|---|
| Optical system | Yes | -- |
| Body | Yes | -- |
| Viewing Head for Main Observer | Yes | Yes |
| Viewing Head for Co Observer | -- | -- |
| -- | Yes | Yes |
| Dual Head Attachment | Yes | Yes |
| Eye piece | -- | -- |
| -- | Yes | Yes |
| Nosepiece | Yes | -- |
| Objectives | Yes | -- |
| Focus System | Yes | -- |
| Mechanical Stage | Yes | -- |
| Illumination | Yes | -- |
| Condenser | Yes | -- |
