MX21i

features_image1

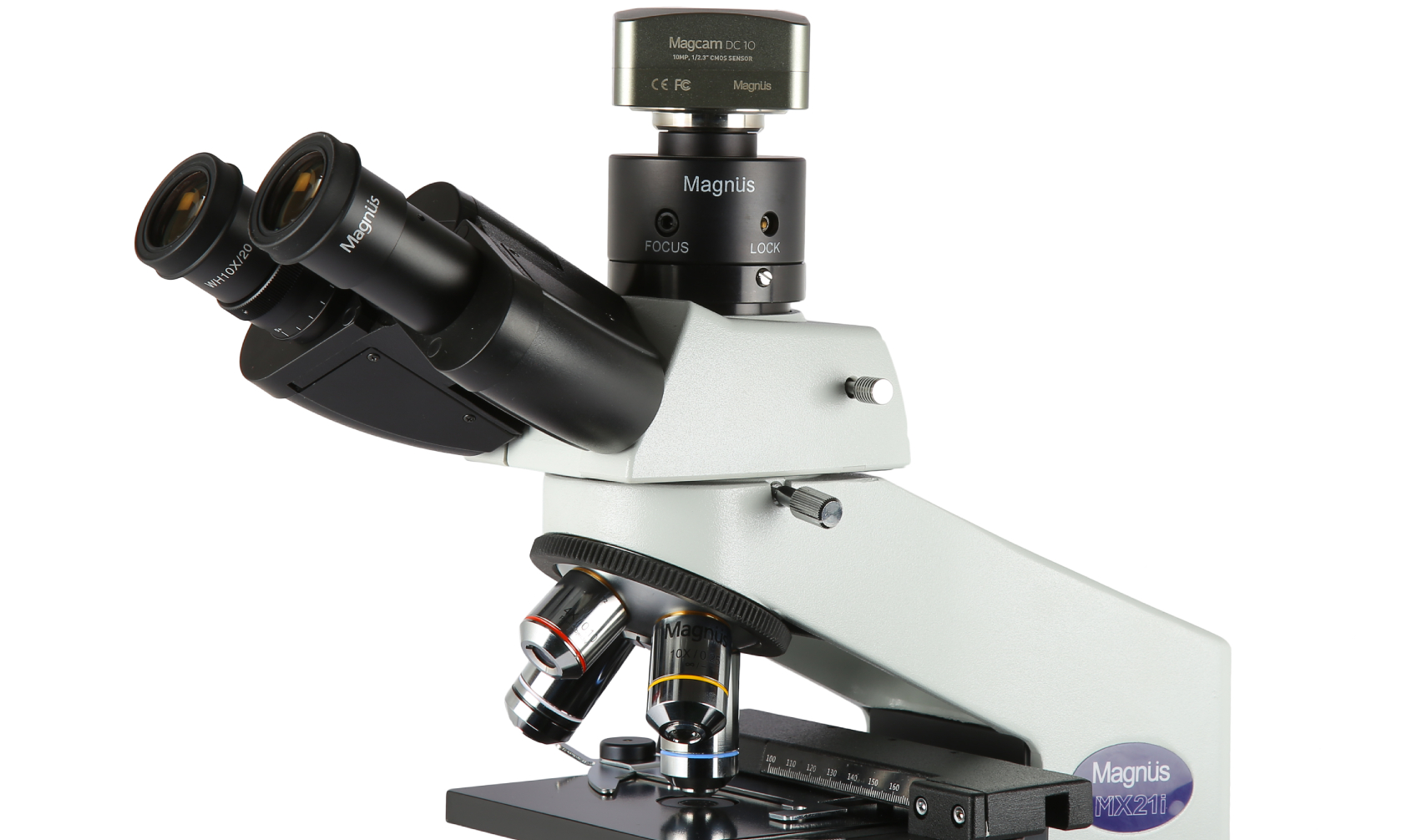

High eyepoint Design eyepiece (F.N. 20)

WH10x (FN 20mm) paired eyepiece.

The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity.

Compatible with an optionally available eyepiece micrometer.

Plan superior imaging

Plan Achromat Objectives N.A. W.D.
4x 0.10 18.5 mm
10x 0.25 10.6 mm
40x (spring loaded) 0.65 0.6 mm
100x (oil, spring loaded) 1.25 0.13 mm
features_image2
features_image3

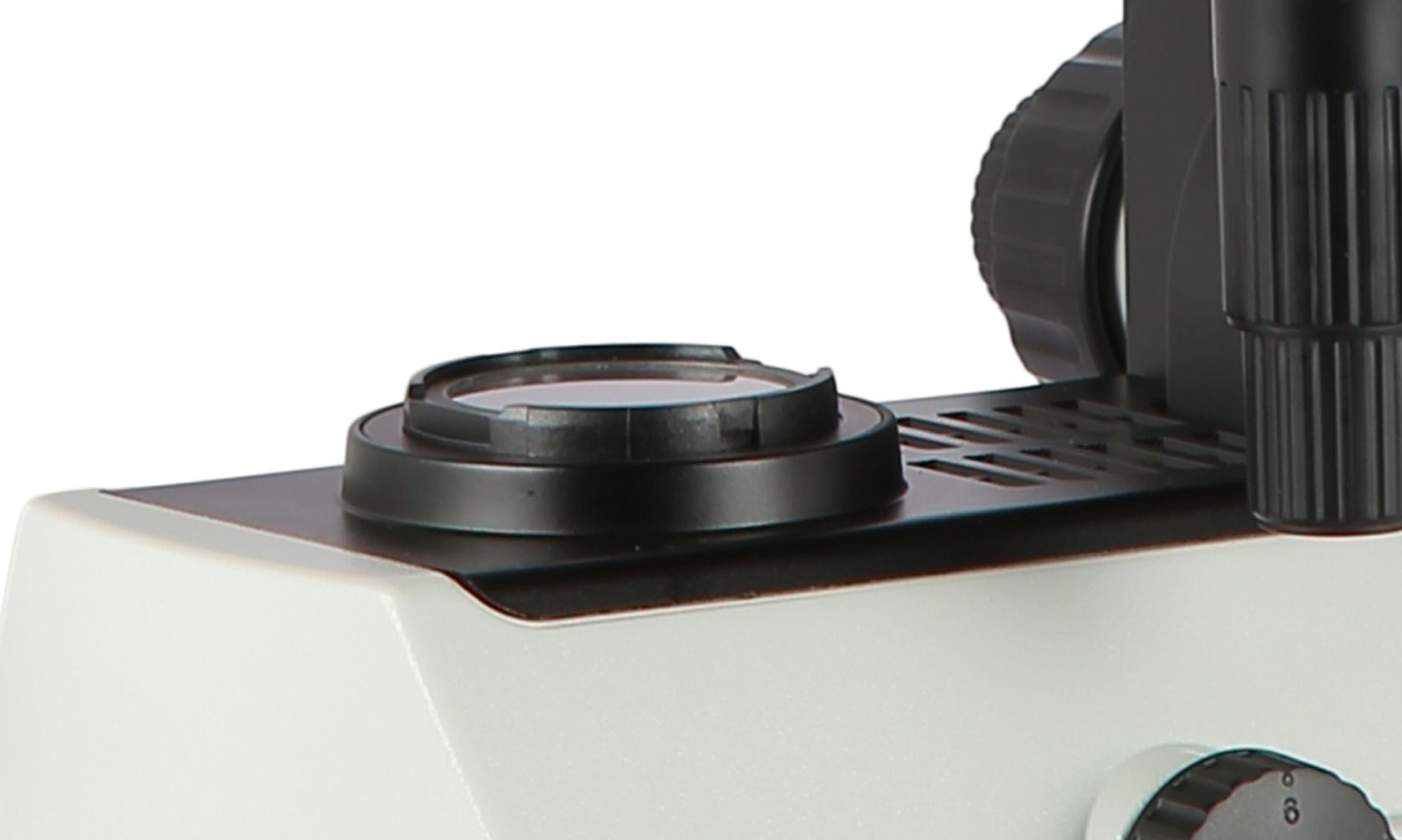

Aspheric light relay system for bright and uniform illumination

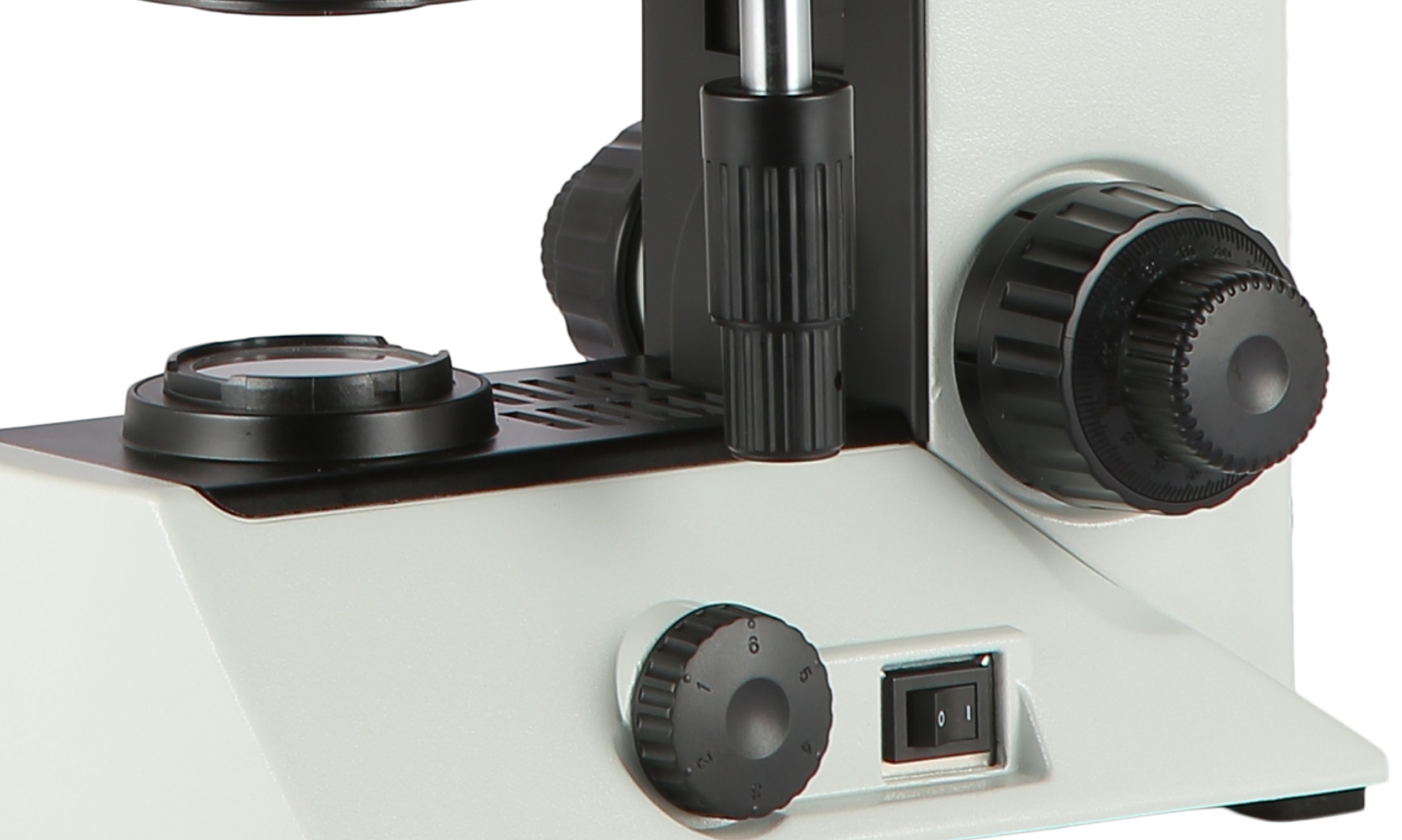

Ergonomic design for user convenience

An ergonomic and compact design along with a reckless stage provides durability and ease of use. As a result, it provides users extreme convinience and is student proof.

features_image4

Optical system

Infinity corrected plan optics with Uniformly centered, interchangeable & parfocal , Tropicalized anti fungus treatment ensures image excellence for long periods in conditions favouring to fungus growth.

Objectives

Plan Infinite Achromat 4X, 10X, 40X, 100X

Eyepieces

WH 10x (FN 20mm) paired eyepiece with eyeguards . The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with optionally available eyepiece micrometer.

Diopter Correction

Dioptric adjustement available on the left eyepiece tube

Observation Head

Binocular head (30 degree inclined seidentopf), 360 degree rotatable,with diopter adjustment on the left . Interpupillary distance 48-75mm

Trinocular head (30 degree inclined seidentopf), 360 degree rotatable,with diopter adjustment on the left . Interpupillary distance 48-75mm.

Power supply

(a) Built-in illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal power supply 100V-240V AC 50/60Hz single phase.

(b) 3W LED light soure high brightness, longlife (30,000hrs)

(c) LED light soure (with battery back-up) high brightness, longlife (30,000hrs). Battery back-up in-built NiMH rechargeable batteries.

Nose Piece

Quadruple revolving outward nosepiece based on precision ball-bearing mechanism with positive click stop.

Body

Aluminium die- cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise manipuation

Mechanical Stage

Co-axial low drive mechanical rackless stage 120 mm x 132 mm with traverse area of 76 mm x 30 mm with single slide holder.

Focusing System

Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.25mm

Condenser Holder

Rack and pinion mounted condenser holder

Condenser

Pre-centered abbe condenser with aperture iris diaphragm (N.A. 1.25) focusable with rack & opinion and a continously variable iris diaphragm with a removable blue filter for day light observation

Accessories

(a) Phase Contrast attachment, Dark field attachment, Fluorescence attachment EPILED, Kohler attachment, Polarizing attachment.

(b) Objective 20X

(c) MagCam digital camera 3MP/5MP/10MP/HD camera

Magnification range

40x ~ 1000x for observation

LED life

30,000 hrs

Models Illumination Observation tube
MX21i-Bi Binocular 6v 20w Halogen 30° Binocular, Sidentopf
MX21i-Tr Trinocular 6v 20w Halogen 30° Trinocular, Sidentopf
MX21i-B LED Binocular 3W LED 30° Binocular, Sidentopf
MX21i-Tr LED Trinocular 3W LED 30° Trinocular, Sidentopf
MX21i-B Freedom Binocular LED with battery back-up 30° Binocular, Sidentopf
MX21i-Tr Freedom Trinocular LED with battery back-up 30° Trinocular, Sidentopf
