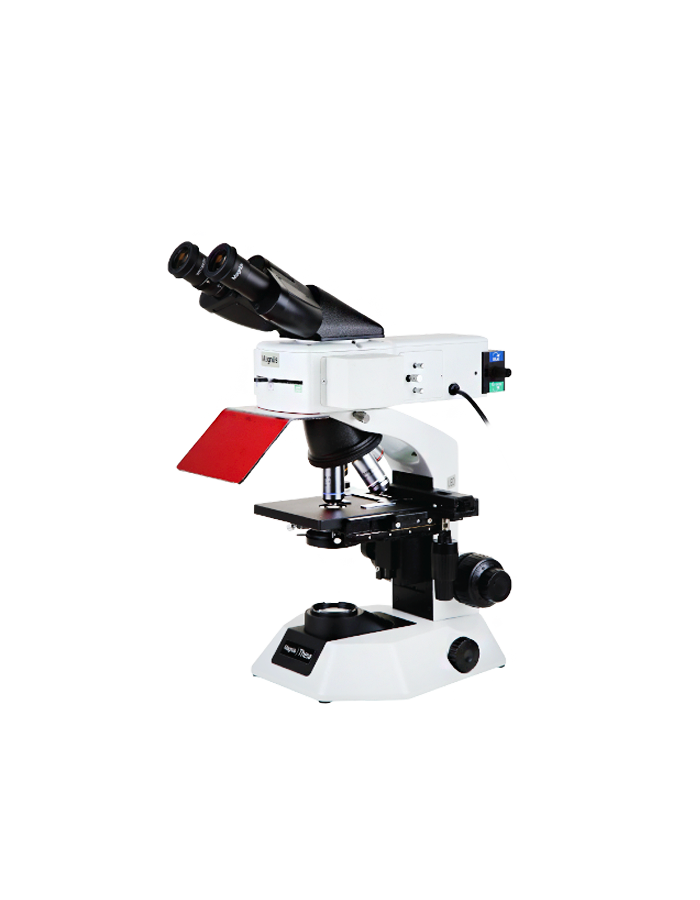

Reflected LED Fluoroscence Microscope

features_image1

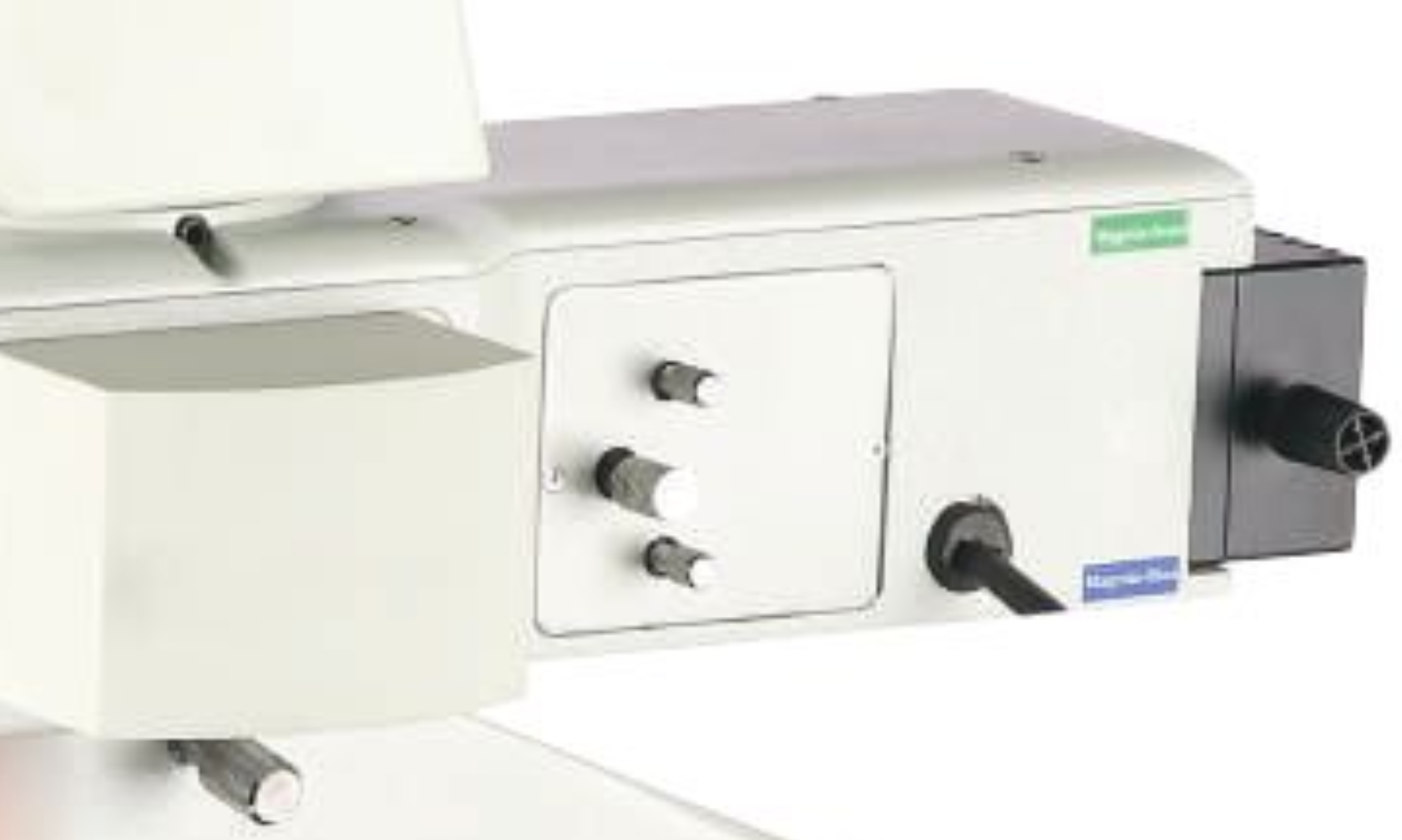

LED Source

Microscope with built-in LED fluorescence source with low power consumption of 3W

No lamp replacement required (lamp life > 20000hrs) with choice of three filters: Blue, Royal Blue, Green

Minimal Photo bleaching

Minimal photo bleaching due to variable light control which allows adjustment of illumination intensity

features_image2
features_image3

Two Applications in One

Users can easily switch between brighfield and Fluoroscence applications without removing fluoscence module

LifeTime

30,000 hrs

LED power

3W

Royal Blue : 450 nm

Blue : 480nm

Green : 535 nm

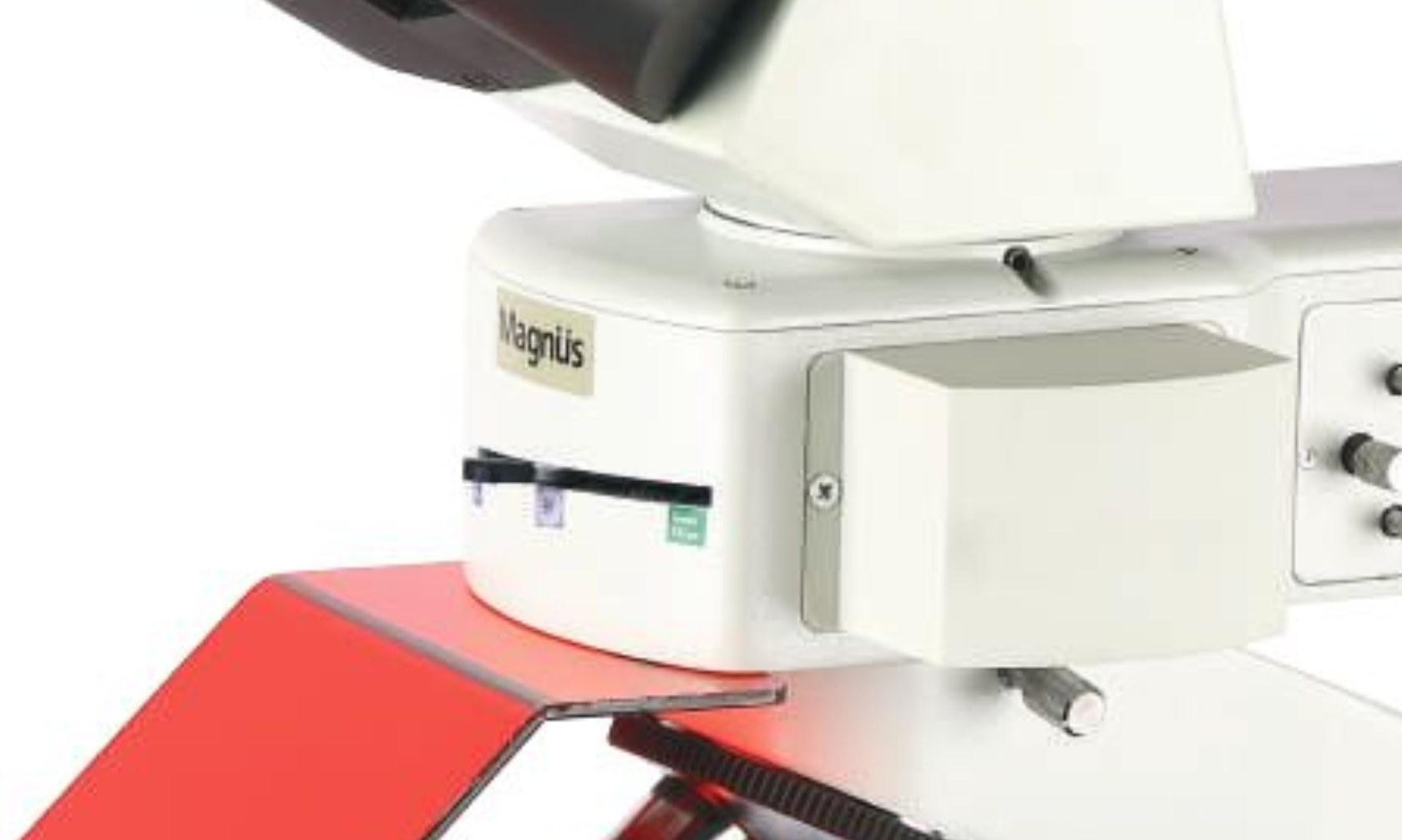

Emission Filters

1 or 2 position front sliding filter carrier depending on the excitation spectra, with iris diaphragm for high contrast and sharpness.

Electrical Parameters

AC Adaptor input : 100~240V AC , Output Voltage : 9V, 2A DC

Application:

Detection of mycobacterium tuberculosis TB ( Royal Blue)

Detection of MALARIA after staining with acridine orange

Alexa 488, FITC ( Blue Excitation), Rhodamine, TRITC ( Green Excitation)

Autoimmune Diseases.

Compatible Microscopes:

Magnus Theia-i/MLXi - Plus

Magnus MX21i

Olympus CX23, CX33

Models Illumination Observation tube
MLXi- Plus LED Binocular with EPI-LED (Blue) 3W Blue LED 30° Binocular, Sidentopf
MLXi- Plus LED Binocular with EPI-LED (Green) 3W Green LED 30° Binocular, Sidentopf
MLXi -Plus Tr LED Trinocular with EPI-LED (Blue) 3W Blue LED 30° Trinocular, Sidentopf
MLXi -Plus Tr LED Trinocular with EPI-LED (Green) 3W Green LED 30° Trinocular, Sidentopf
MLXi- Plus LED Binocular with EPI-LED (Blue & Green) 3W B&G LED 30° Binocular, Sidentopf
MLXi -Plus Tr LED Trinocular with EPI-LED (Blue & Green) 3W B&G LED 30° Trinocular, Sidentopf
