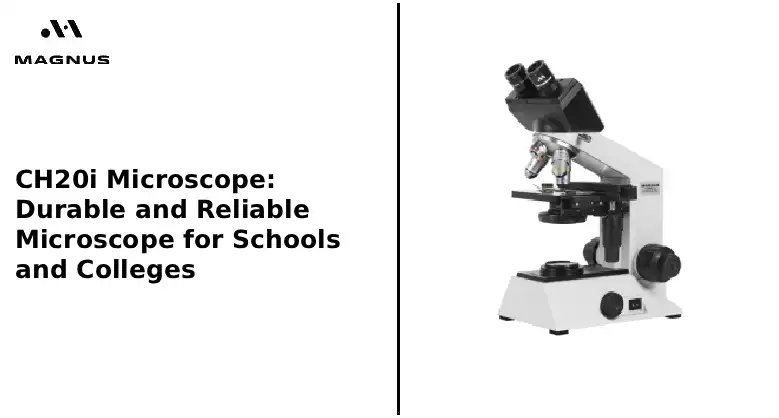

CH20i Microscope: Durable and Reliable Microscope for Schools and Colleges
The CH20i educational microscope is designed for learning environments and classrooms where reliability is crucial. Institutions need technology that lasts for years, and teachers need something that functions without continual maintenance. Additionally, students need a tool that is simple to use.
All of these needs are successfully combined in the CH20i. It is highly useful and provides unique images that help students fully comprehend what they are seeing. The CH20i is one of the safest long-term options, whether a school is building a new lab or updating current equipment. It is considered the best microscope for college labs, as it meets the needs of both teachers and students. Here, you will learn about the CH20i Microscope and how durable and reliable it is for schools and colleges.
Long-lasting and Simple to Use
A robust aluminium die-cast body makes up the CH20i. Even when several students use the microscope throughout the day, its strong design keeps it steady. When focusing, a sturdy microscope is crucial. This is so applicable for beginners who are still learning how to turn the knobs without distorting the image. CH20i is the durable Microscopes for Schools that promotes learning and eliminates needless wobbling.
Ball bearings and wire guides power all of the primary moving components. The microscope feels smooth and under control as a result. There won't be any stiff or jerky movements from students when the stage or objectives change. Additionally, this lessens the number of incidents in the classroom where forceful handling damages equipment. Students can focus more on learning rather than fumbling with the controls when a microscope responds to human input quickly and quietly. For this reason, it is frequently suggested in CH20i microscope review talks.
Clear and Comfortable Optics
Any microscope needs good optics, but this is especially true in schools where students need to be able to identify the following
- Germs
- Tissues
- Cells
- Small objects
The CH20i uses achromatic objectives to minimise colour distortion and blurring. This provides new learners with a clear and accurate image that facilitates specimen inspection.
An anti-fungal layer protects every lens. In humid conditions, where fungal development can swiftly destroy optical surfaces, this is very important. This is advantageous for schools, as it eliminates the need for regular maintenance and part replacements.
Additionally, the eyepieces are made with comfort in mind. The field number of 18mm provides a larger viewing area and more natural observations. Additionally, students can change the diopter on the left eyepiece to suit their vision. These CH20i microscope features make the microscope much more user-friendly because several students share it.
Flexible Viewing Head and Magnification Range
The CH20i has a 360-degree rotating binocular head with a 45-degree inclination. Many students can easily and comfortably adjust the microscope due to this design. The interpupillary range of 53 to 75 mm guarantees that instructors and younger students can all use the same device without difficulty. Additionally, it provides a full range of objectives such as
- 4x
- 10x
- 40x spring
- 100x oil immersion.
This provides a magnification range suitable for both more complex college-level demonstrations and basic school instruction. Because of its broad range, it is regarded as the ideal microscope for college labs and is also suggested as a CH20i microscope for biology labs.
Efficient and Long-Lasting Illumination
To see small structures properly, proper lighting is necessary. A powerful 6V 20W halogen lamp with a collector lens system that uniformly distributes light across the slide is included with the CH20i. Uneven lighting or gloomy areas won't be a problem for students.
A 3W LED variant is also available for contemporary labs. LED illumination microscopes for classrooms are perfect for extended classroom sessions, as they last more than 30,000 hours and generate less heat. Models with rechargeable battery backup will be useful for schools with erratic electricity. These LED models are classified as classroom LED illumination microscopes. They provide a reliable light source even during power outages.
Smooth Stage and Focusing Controls
The CH20i's mechanical stage simplifies and improves slide handling. Students can readily navigate their specimens, as they are 120 x 132 mm and have a 76 x 30 mm mobility range. When tracking moving microorganisms or comparing various parts of a material, the rack-and-pinion mechanism's smooth slide control is particularly useful.
Coarse and fine adjustments are combined on a single axis via the focusing system. Fine focus rotates at 0.25mm, while coarse focus has a range of 20mm. As a result, beginners may swiftly capture the image and then refine it without going overboard or losing focus. In labs where students are still acquiring fundamental skills, smooth focus is particularly crucial.
Technical Snapshot Of CH20i Microscope
Below is a quick overview of important CH20i microscope features:
- Achromat optical system with anti-fungal coating
- iNEA objectives: 4x, 10x, 40x spring, 100x oil
- iCWHK 10x eyepieces with 18mm field number and diopter adjustment
- 45° inclined binocular or trinocular head
- Halogen 6V 20W or LED 3W illumination options
- Mechanical stage 120 × 132 mm with 76 × 30 mm movement
- Coaxial coarse and fine focus
- Abbe condenser N.A. 1.25 with iris diaphragm
- Compatible accessories: phase contrast, dark field, polarising kits, digital cameras
The Final Words
For educational institutions that require a reliable and functional microscope, the CH20i is a wise choice. It provides consistent lighting and crisp optics. Students find classroom work easier and more pleasurable as a result. The design promotes hands-on learning without additional effort and works well in contemporary labs. Additionally, it requires relatively little maintenance. The CH20i delivers dependable results whether used for advanced study or basic instruction. Many educators who use the CH20i microscope setup guide in the classroom find it reliable and trustworthy.
FAQs :-
1. How is the CH20i microscope designed to withstand daily use in schools and colleges?
The CH20i features a sturdy aluminium die-cast body, smooth ball-bearing movement, and well-protected mechanical parts. These components prevent wobbling, reduce damage from rough handling, and ensure the microscope stays stable even when used by multiple students every day.
2. Why is the CH20i considered a reliable microscope for biology and classroom labs?
It offers achromatic, anti-fungal coated optics, smooth focusing, strong illumination, and an ergonomic viewing head—features that help students clearly see cells, tissues, and microorganisms. Its longevity and low-maintenance design make it a dependable option for long-term educational use.
3. How does the CH20i ensure clear and easy viewing for beginners?
The microscope uses achromatic objectives to minimise colour distortion, an 18mm wide-field eyepiece for a broader view, and adjustable diopter control to match different students’ eyesight. These elements help even first-time learners get accurate, sharp images without difficulty.
4. Why is the illumination system on the CH20i suitable for long classroom sessions?
The CH20i offers two lighting options: a powerful halogen lamp and a 3W LED version. The LED option lasts 30,000+ hours, generates less heat, provides uniform brightness, and some models include battery backup—meaning uninterrupted learning even during power cuts.
5. How does the CH20i help students handle slides and focus more efficiently?
Its mechanical stage provides smooth slide movement, while the coaxial coarse and fine focus knobs allow students to locate and refine images quickly. The 20mm coarse range and precise 0.25mm fine movement make it ideal for beginners learning proper focusing techniques.
