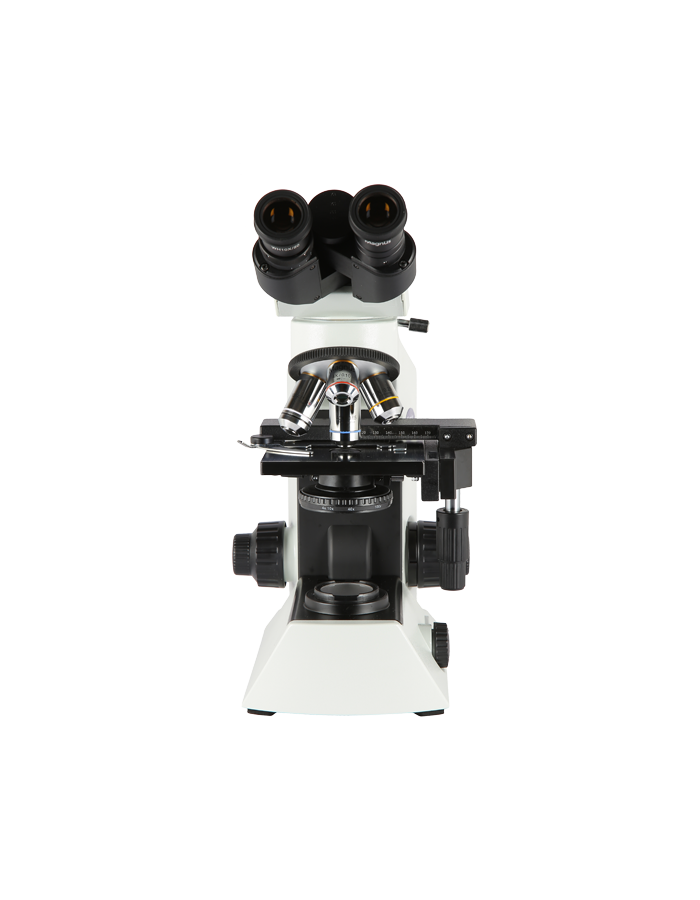

High eyepoint Design eyepiece (F.N. 20)
WH10x (FN 20mm) paired eyepiece.
The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity.
Compatible with an optionally available eyepiece micrometer.
Plan superior imaging
| Plan Achromat Objectives | N.A. | W.D. |
|---|---|---|
| 4x | 0.10 | 18.5 mm |
| 10x | 0.25 | 10.6 mm |
| 40x (spring loaded) | 0.65 | 0.6 mm |
| 100x (oil, spring loaded) | 1.25 | 0.13 mm |

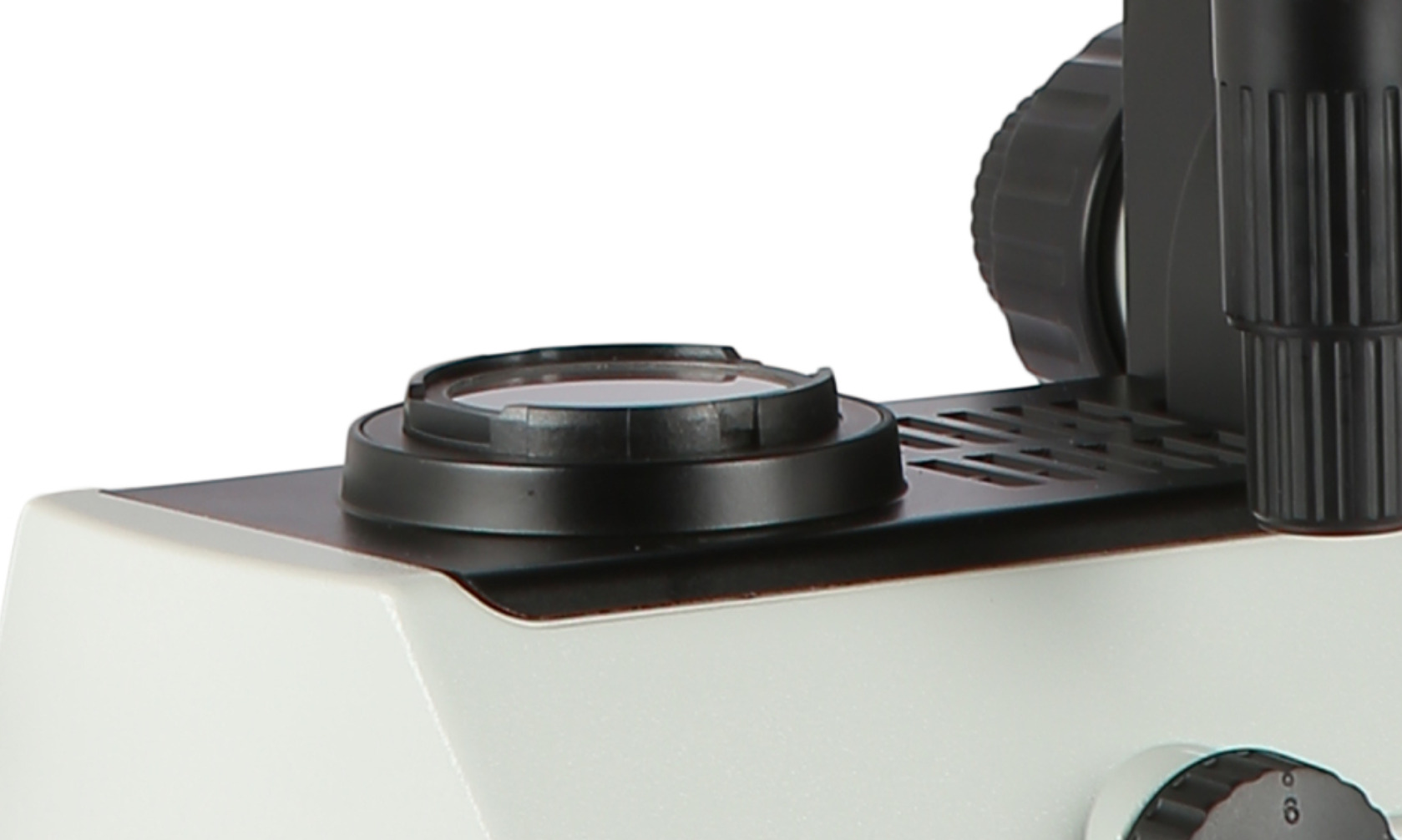

Aspheric light relay system for bright and uniform illumination
Ergonomic design for user convenience
An ergonomic and compact design along with a reckless stage provides durability and ease of use. As a result, it provides users extreme convinience and is student proof.
Optical system
Infinity corrected plan optics with Uniformly centered, interchangeable & parfocal , Tropicalized anti fungus treatment ensures image excellence for long periods in conditions favouring to fungus growth.
Objectives
Plan Infinite Achromat 4X, 10X, 40X, 100X
Eyepieces
WH 10x (FN 20mm) paired eyepiece with eyeguards . The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with optionally available eyepiece micrometer.
Diopter Correction
Dioptric adjustement available on the left eyepiece tube
Observation Head
Binocular head (30 degree inclined seidentopf), 360 degree rotatable,with diopter adjustment on the left . Interpupillary distance 48-75mm
Trinocular head (30 degree inclined seidentopf), 360 degree rotatable,with diopter adjustment on the left . Interpupillary distance 48-75mm.
Power supply
(a) Built-in illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal power supply 100V-240V AC 50/60Hz single phase.
(b) 3W LED light soure high brightness, longlife (30,000hrs)
(c) LED light soure (with battery back-up) high brightness, longlife (30,000hrs). Battery back-up in-built NiMH rechargeable batteries.
Nose Piece
Quadruple revolving outward nosepiece based on precision ball-bearing mechanism with positive click stop.
Body
Aluminium die- cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise manipuation
Mechanical Stage
Co-axial low drive mechanical rackless stage 120 mm x 132 mm with traverse area of 76 mm x 30 mm with single slide holder.

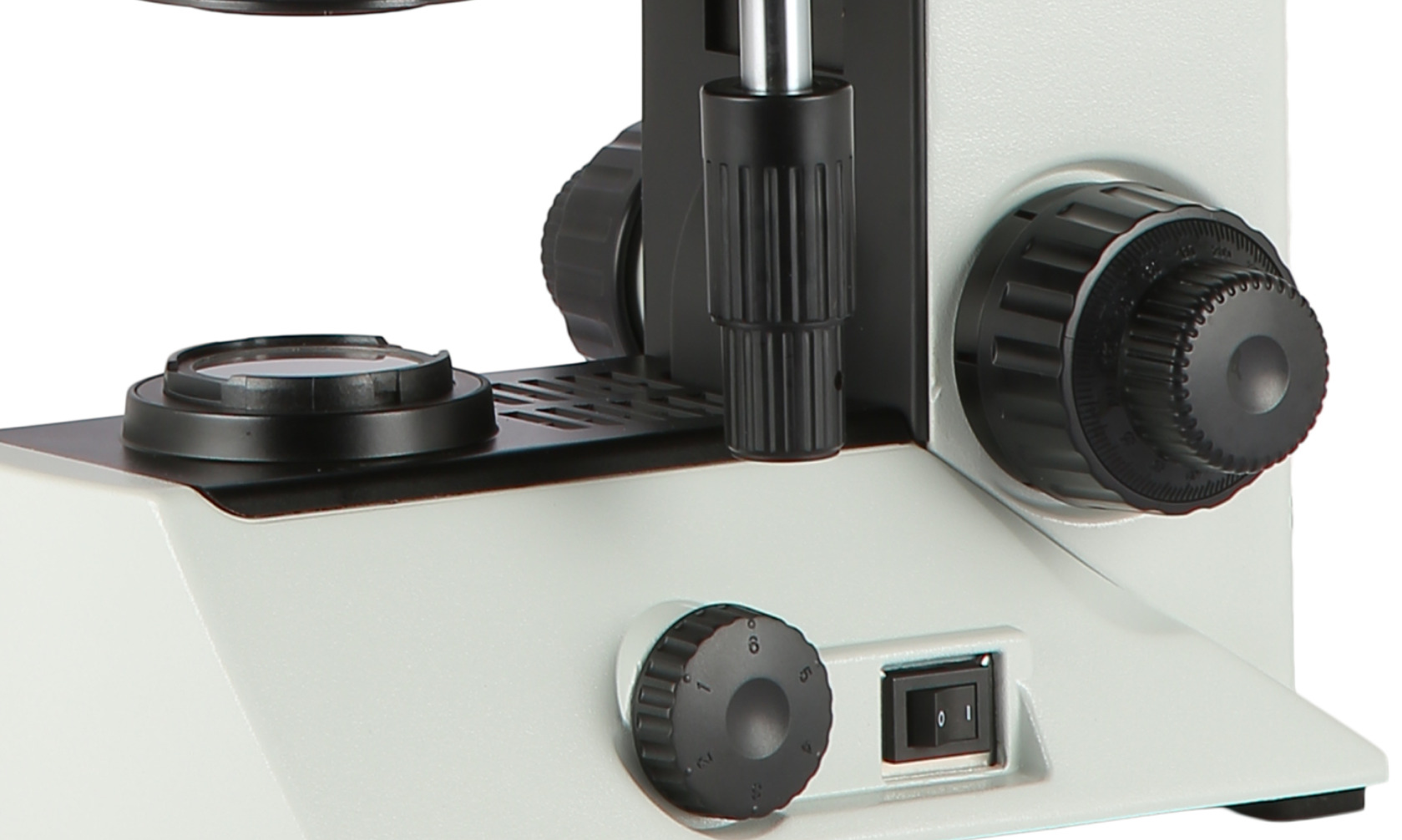

Focusing System
Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.25mm
Condenser Holder
Rack and pinion mounted condenser holder
Condenser
Pre-centered abbe condenser with aperture iris diaphragm (N.A. 1.25) focusable with rack & opinion and a continously variable iris diaphragm with a removable blue filter for day light observation
Accessories
(a) Phase Contrast attachment, Dark field attachment, Fluorescence attachment EPILED, Kohler attachment, Polarizing attachment.
(b) Objective 20X

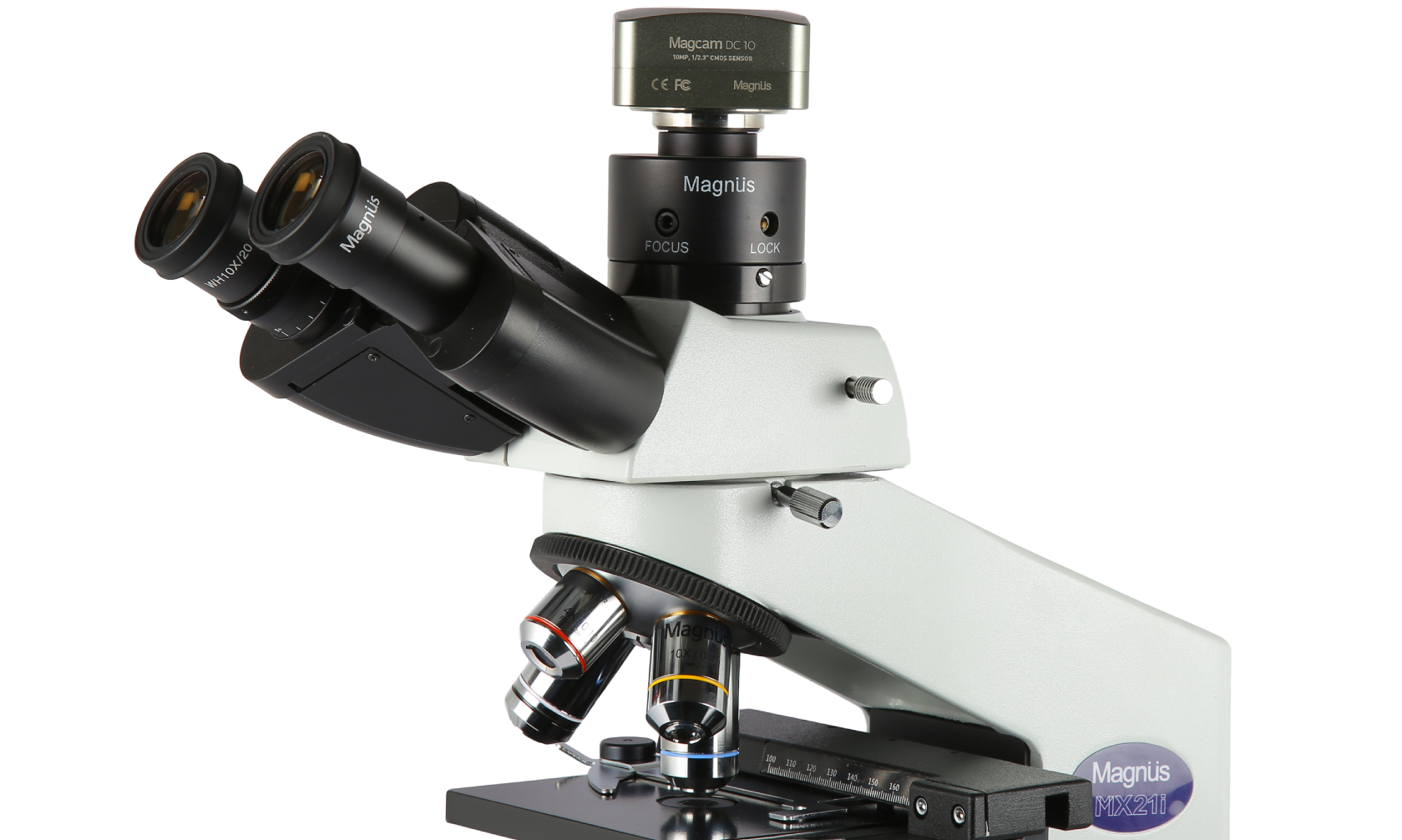

(c) MagCam digital camera 3MP/5MP/10MP/HD camera
Magnification range
40x ~ 1000x for observation
LED life
30,000 hrs
| Models | Illumination | Observation tube |
|---|---|---|
| MX21i-Bi Binocular | 6v 20w Halogen | 30° Binocular, Sidentopf |
| MX21i-Tr Trinocular | 6v 20w Halogen | 30° Trinocular, Sidentopf |
| MX21i-B LED Binocular | 3W LED | 30° Binocular, Sidentopf |
| MX21i-Tr LED Trinocular | 3W LED | 30° Trinocular, Sidentopf |
| MX21i-B Freedom Binocular | LED with battery back-up | 30° Binocular, Sidentopf |
| MX21i-Tr Freedom Trinocular | LED with battery back-up | 30° Trinocular, Sidentopf |
