100% field of view in Still Image

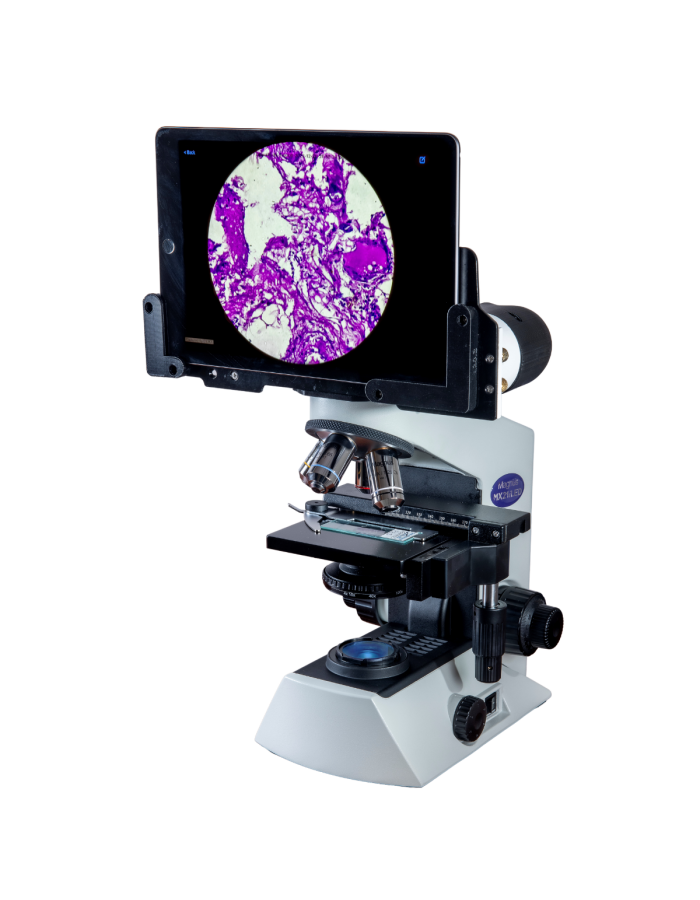

Apple IPad with 8-Megapixel Camera
Superior Infinity Plan Achromat Objectives
for Crisp Images
Body
Alluminium die-cast body with all critical movements based on ball bearing and wire guides thereby ensuring and precise manipulation
Mechanical Stage
Co-axial low drive mechanical stagewith wire movement (120x132mm) (+-5mm) with trasverse area of 30mm x 76mm (+-5mm) with single slide holder
Focusing System
Co-axial coarses and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.25mm
Condenser Holder
Rack and pinion mounted condenser holder
Condenser
Abbe-condenser with aperture iris diaphragm (N.A 1.25) focusable with rack & pinion and a continously variable diaphragm
Illumination Base with Option
(a) 3W LED light source high brightness, longlife (30,000 hrs)
(b) 1 W LED light source (with battery back-up) High brightness, long life (30,000hrs). Battery back-up in built NiMH Rechargeable batteries provide 6 to 8 hrs back-up on a full charge
Nose Piece
Quadruple revolving nosepiece based on precision ball-bearing mechanism with positive click stop.
Mechanical Stage
Co-axial low drive mechanical stagewith wire movement (120x132mm) (+-5mm) with trasverse area of 30mm x 76mm (+-5mm) with single slide holder
Focusing System
Co-axial coarses and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.25mm
Condenser Holder
Rack and pinion mounted condenser holder
Condenser
Abbe-condenser with aperture iris diaphragm (N.A 1.25) focusable with rack & pinion and a continously variable diaphragm
| Plan Achromat Objectives | N.A | W.D |
| 4x | 0.1 | 18.5mm |
| 10x | 0.25 | 10.6mm |
| 40x (spring loaded) | 0.65 | 0.6mm |
| 100x (oil, spring loaded) | 1.25 | 0.13mm |
